The KAP Project
Project Overview
- The property comprises 6 mineral claims, covering 7,500 hectares.
- Integral Metals Corp. owns 100% interest in the KAP property.
- Accessible from the town of Norman Wells via helicopter. The town provides essential services including a local airport, hotels, gas station, and outfitter.
- Located northwest of Dal Lake, the property is situated on the east flank of the Redstone Arch, within the Fold Belt of the MacKenzie Mountains. Bedrock units predominantly consist of broadly folded carbonates and shales with intervening zones of complex folding and faulting.
- Mineralization is stratabound, with numerous occurrences of disseminated and massive sphalerite and galena spread over a large area encompassed by the property, where high grade zinc, gallium, and germanium are associated with collapse and crackle breccias.

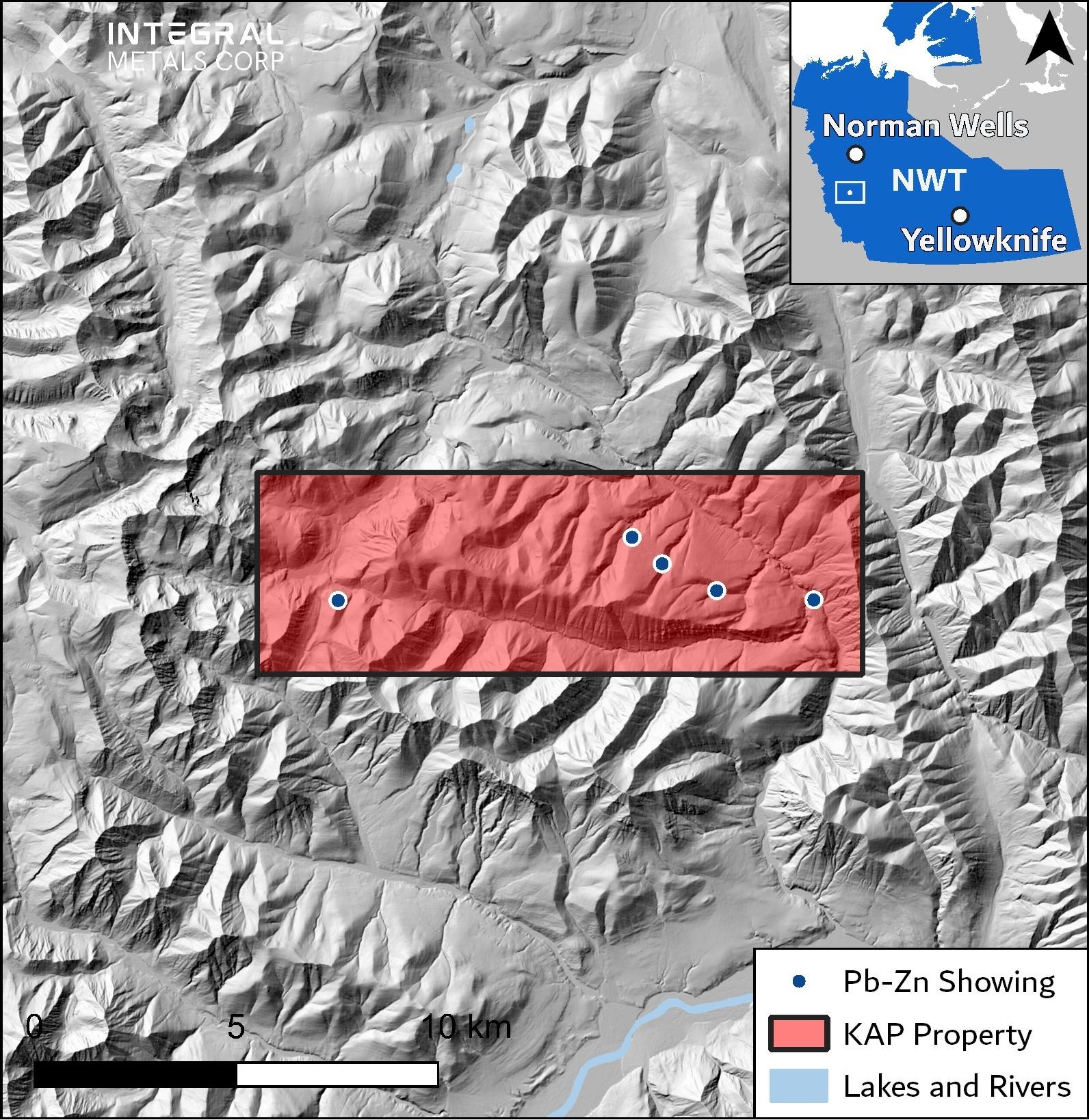

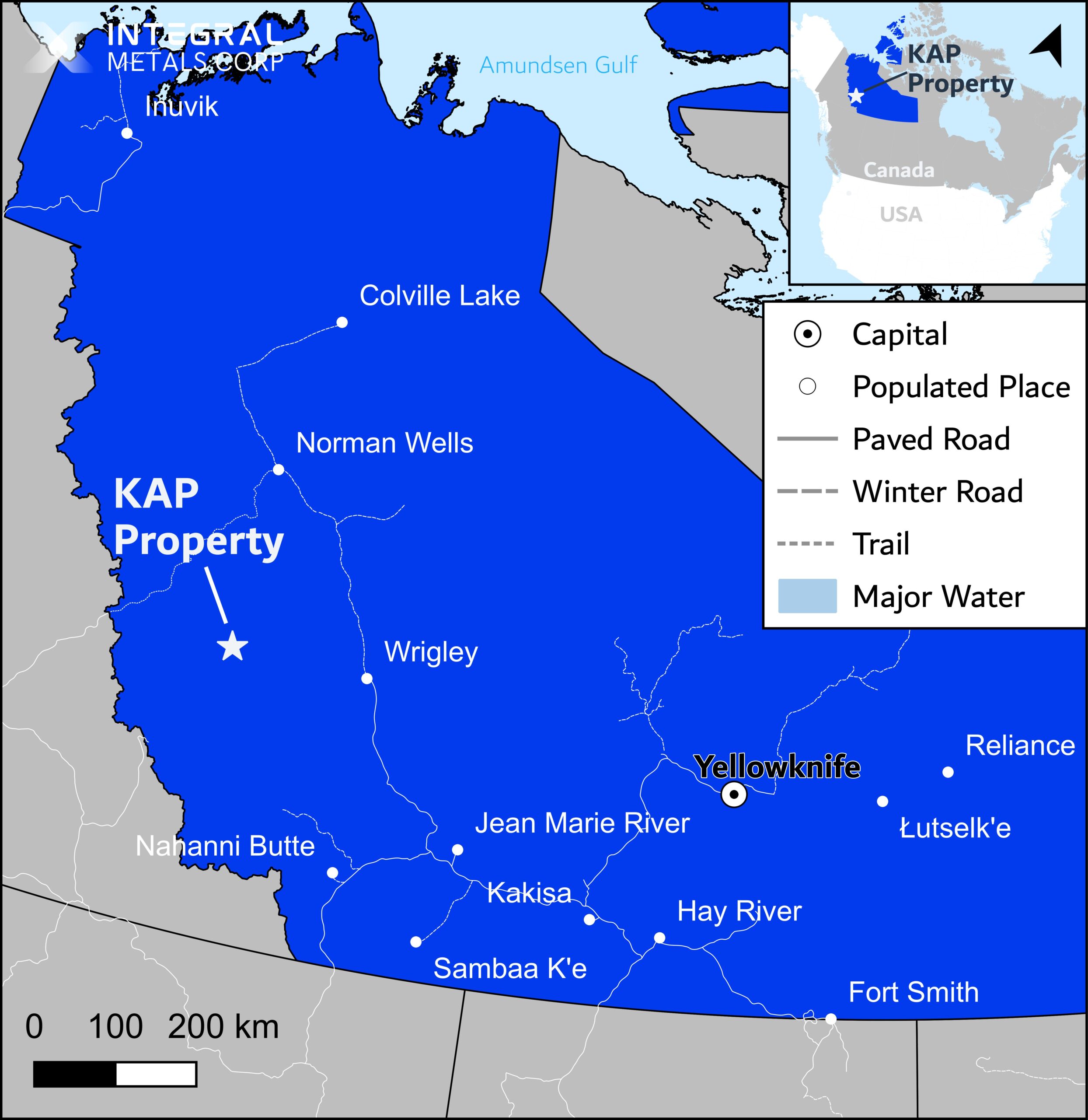

Project Location
- The property is situated approximately 220 kilometers south of Norman Wells, NWT, and just 160 kilometers east of Wrigley, NWT.
- The all-weather MacKenzie Highway extends to Wrigley and is serviceable throughout most of the year. Exploration activity staging can be performed at Dal Lake (20 km from project) where float-equipped aircraft can land and unload heavy equipment.
- Situated on publicly-held Commissioner’s Land, well spaced from First Nation land withdrawals and National park spaces.
- Positioned within the Mackenzie Mining District, NWT.

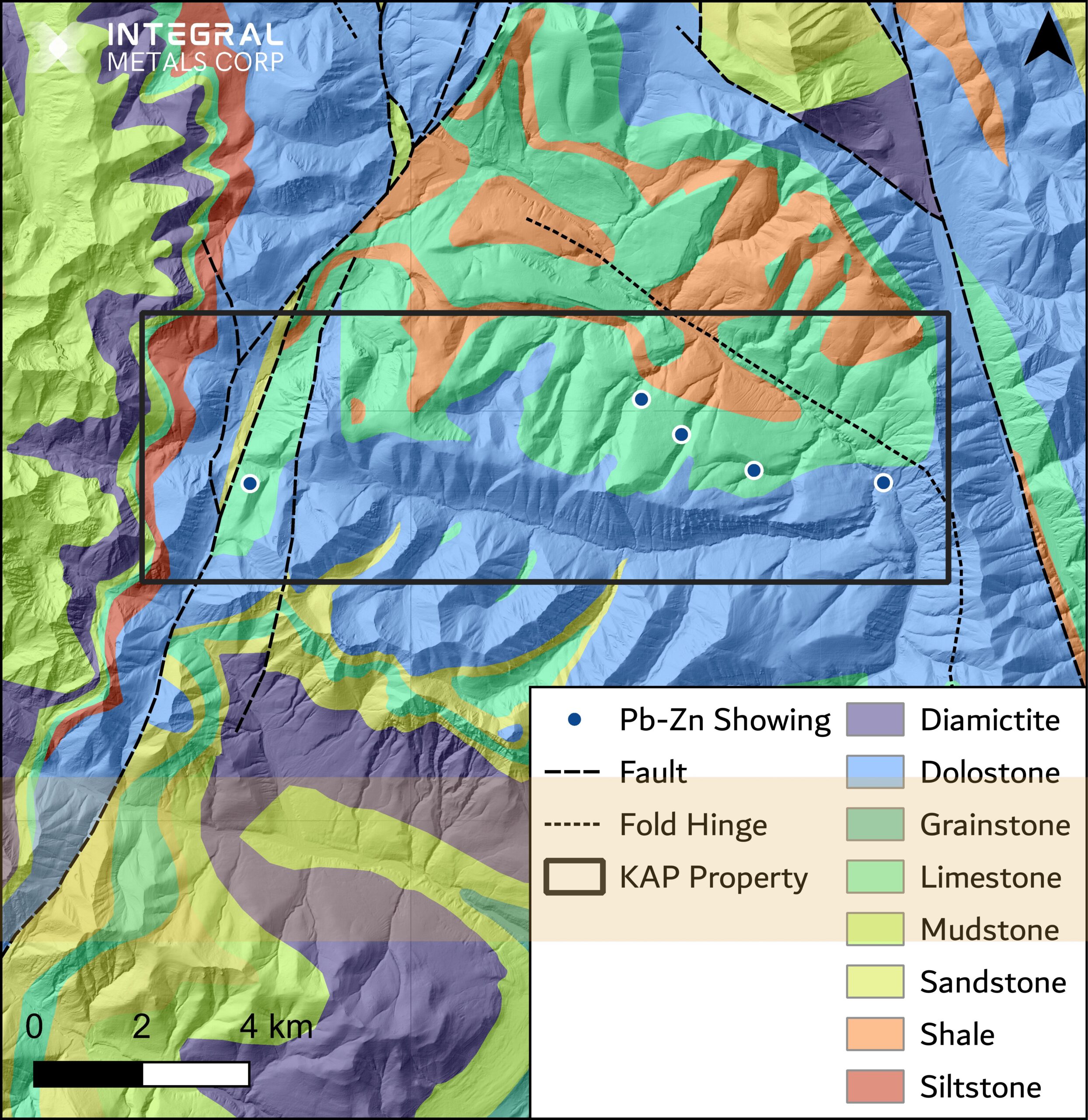

Project Geology
Location: East Proterozoic Redstone Arch, MacKenzie Fold Belt, Cordilleran Orogenic Zone
Regional Devonian carbonates are a favorable target zone for Mississippi Valley-type (MVT) orebodies.
Stratigraphic Contact: The Arnica-Landry Contact is exposed by steeply incised stream valleys, which cut down from a plateau area to expose mineralization
The abundance of known sphalerite-galena showings at the same stratigraphic level wherever this contact is exposed indicates high-potential for additional blind mineralization beneath the plateau over an 11 km x 13 km area.
Host Rocks: The Manetoe Facies of the Landry Formation
Mineralization is stratabound within this facies, where a 4.0 km x 1.5 km area is inferred to have the best potential for blind MVT deposits at less than 250 m depth below surface.
Geological Structures: Mineralization occurs on the limb of a gently dipping, broad syncline that characterizes the topography
The topography reveals the unit at surface, while structure-control provides an opportunity for more discoveries along the fold limbs.
Mineralized Characteristics: The Manetoe Facies exhibits brecciation, fracturing, granular dolomite, bitumen coated quartz needle silicification, dolspar, and calspar
These features are associated with MVT deposits, such as the historic Pine Point lead-zinc mine in the NWT.
Mineralization
- Zinc-bearing Sphalerite is reportedly elevated in gallium (190 ppm) and germanium (770 ppm)*
- High-grade, clean, coarse sphalerite ore so far discovered is expected to have excellent milling and beneficiation characteristics
- The showings so far defined are associated with a collapse and crackle breccias that extend into the plateau area, providing the opportunity to discover significant blind zones of high-grade mineralization

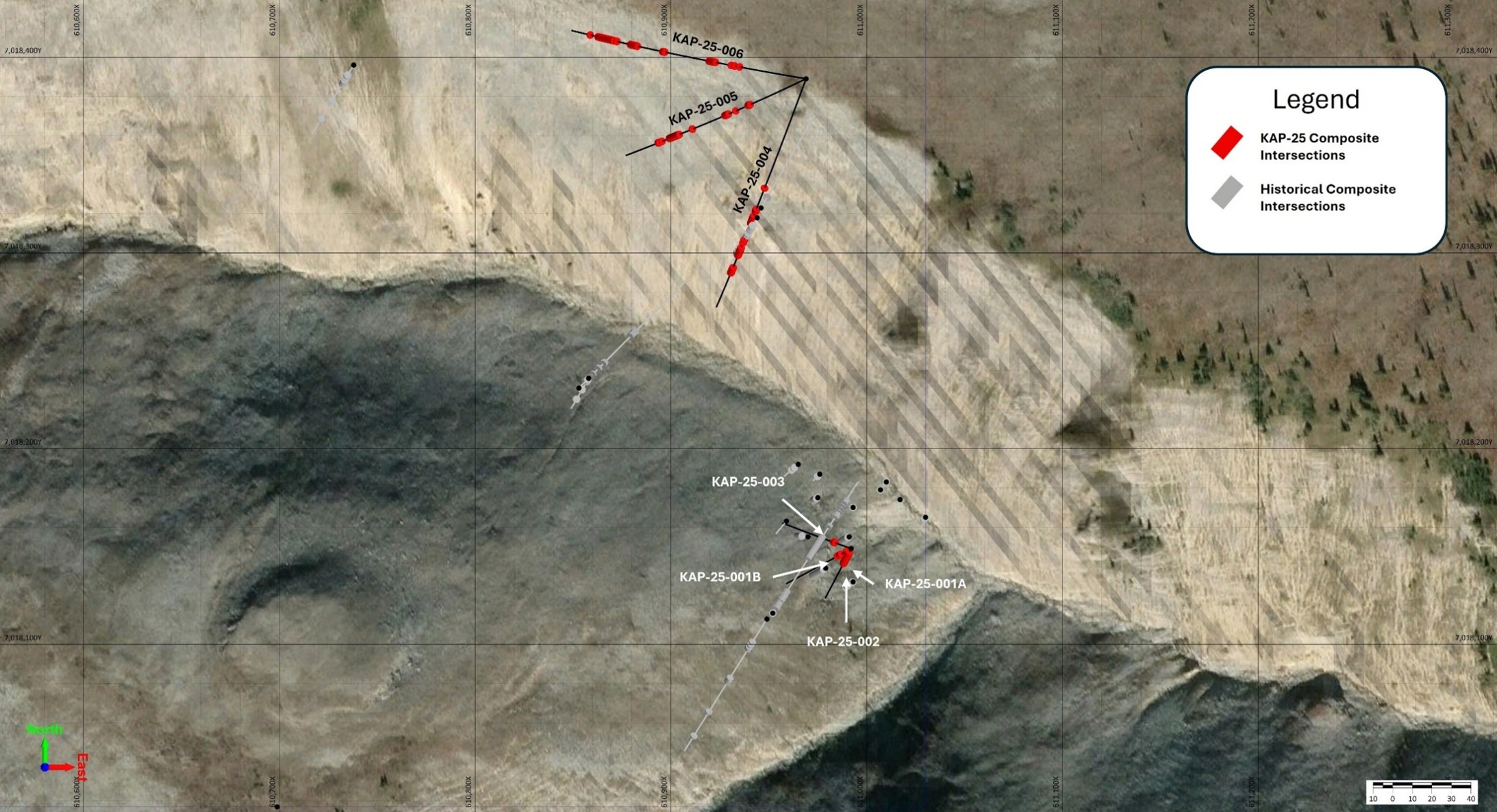

- Main Showing
- Drill-tested high-grade deposit with a non-compliant resource estimate of about 50,000 t at 17.8% Zn covering 4,200 m2
- Several untested gravity and soil geochemistry anomalies along strike
- Steep Creek Showing
- Hand samples indicate 24.5% Zn covering 9 m2
- Similar geologic setting as the Main Showing
- Breccia Creek Showing
- Channel sample graded 34.4 % Pb over 0.6 m
- High-grade galena is associated with calcite
- Potential for significant subsurface mineralization
- Blanche Showing
- Sphalerite, galena, and tetrahedrite
- Grab samples graded 61% Zn, 33% Pb, and 185 ppm Ag
*Averaged across 9 samples taken by Equinox Resources (1986)

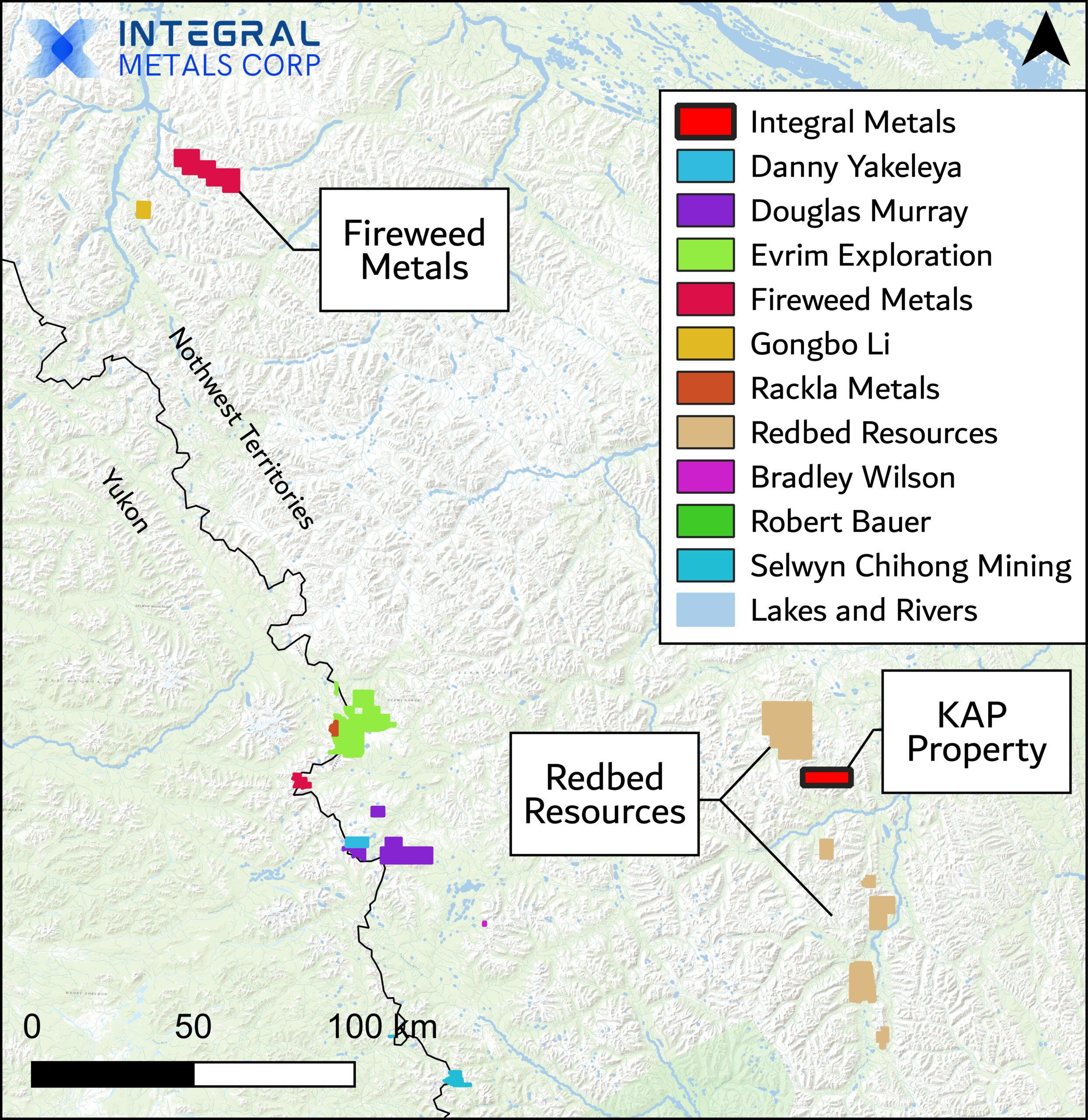

Adjacent Locations
- Integral Metal’s KAP Property encompasses the entire mineralized southwest fold limb and hinge.
- Operators in the area are advancing projects at various stages of development, including prospecting and drilling activities.
- Redbed Resources Corp. is actively developing the Redstone project, with a Mineral Resource Estimate of 33.4 Mt @ 3.92% Cu and 11.3 g/t Ag.
- Fireweed Metals is preparing to perform up to 3,000 m of drilling on the Gayna project, hosting Zn and Pb, along with elevated concentrations of Ga and Ge.
Historical Work
1975: Cominco Ltd. performed a regional exploration program
- Discovered significant Pb-Zn mineralization at the KAP and Adyjo showings
1976: Cominco Ltd. performed geological mapping and sampling, soil geochemistry, trenching, and diamond drilling
- Discovered the Blanche and Olaxis showings
- Thirteen drill holes on the Main Showing Area up to 40 m depth; five holes returned 2.5 m to 13.5 m of zinc ore ranging from 10.3% to 32.3%
- Several anomalous zones were identified by soil geochemistry samples exceeding 1,000 ppm Zn and 2,000 ppm Pb
- Mapped the fold structure and identified the mineralized Manetoe Facies as being up to 80 m thick
1985: Equinox Resources Ltd. performed geochemical analysis
- Re-sampled the showings and reported high levels of gallium and germanium in the zinc-bearing sphalerite
1994: Firesteel Resources Inc. performed geophysical surveying
- Five gravity anomaly zones were identified across a 2.8 km2 area surrounding the Main Showing
1996: Firesteel Resources Inc. performed geophysical surveying and diamond drilling
- Extended the gravity survey coverage to the northwest and southeast
- Thirteen drill holes re-tested some of the 1976 holes; tested two of the gravity anomalies; and stepped out from the Main Showing
- Results indicate excellent potential to find significant zones of high grade zinc along strike, towards the Breccia and Steep Creek Showings
1998: Firesteel Resource Inc. performed soil geochemistry
- Orientation study over the Main Showing confirmed soil sampling as an effective technique to detect mineralization
- An new anomalous zone was identified away from the Main Showing
Future Work
Upcoming work on the KAP Property
Camp
- Construct a remote camp to support exploration workers
Magnetic and Imagery Surveys
- 3D inversion model of subsurface magnetic structures to gain insights into the geological structures that are hosting mineralization
- High-resolution imagery to detect and map exposed zones of mineralization across the property
Soil Sampling
- Coverage to be expanded to cover all of the area underlain by the Landry Formation, targeting mineralization related to collapse and crackle breccias
Diamond Drilling
- Evaluate the Main Showing
- Evaluate the untested Gravity Anomalies
- Evaluate the trend of the collapse breccia going under the plateau
Critical Element Geochemistry
- A more comprehensive assay program to encompass gallium and germanium mineralization associated with high-grade zinc
- Additional research on the habit of occurrence and potential economic impact of gallium and germanium
